Description of a process where reactants generate a set of products. More...
#include <processes.hpp>

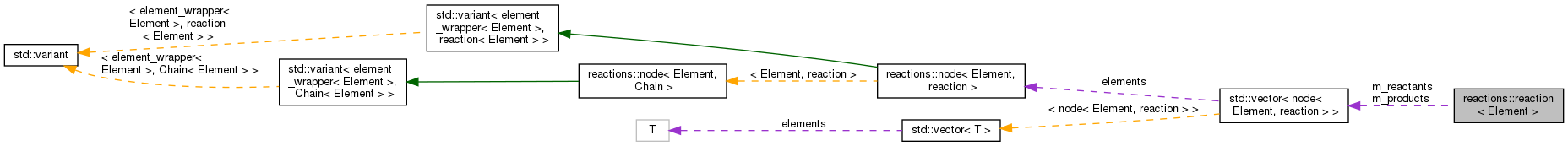

Collaboration diagram for reactions::reaction< Element >:
Public Types | |
| using | element_type = element_wrapper< Element > |
| using | builder_type = element_traits::builder_tpl_t< Element > |
| Underlying element type. More... | |
| using | nodes_type = std::vector< node< Element, reaction > > |
Public Member Functions | |
| reaction (reaction &&)=default | |
| Collection of elements. More... | |
| reaction (const reaction &)=default | |
| Default copy constructor. More... | |
| reaction & | operator= (const reaction &)=default |
| Default assignment operator. More... | |
| ~reaction ()=default | |
| Default destructor. More... | |
| reaction ()=delete | |
| nodes_type const & | reactants () const |
| Get the reactants of the reaction. More... | |
| nodes_type const & | products () const |
| Get the products of the reaction. More... | |
| bool | operator== (reaction< Element > const &other) const |
| Compare two reactions. More... | |
| bool | operator!= (reaction< Element > const &other) const |
| Compare two reactions. More... | |
Protected Member Functions | |
| reaction (std::string::const_iterator &&begin, std::string::const_iterator const &end, builder_type builder) | |
| Constructor from the string iterators. More... | |
| reaction (std::string::const_iterator &sit, std::string::const_iterator const &end, builder_type builder) | |
| Constructor from the string iterators. More... | |
Protected Attributes | |
| nodes_type | m_reactants |
| Reactants. More... | |
| nodes_type | m_products |
| Products. More... | |
Friends | |
| template<class Process > | |
| Process | reactions::processes::make_process (std::string const &, typename Process::builder_type) |
Detailed Description
template<class Element>
class reactions::reaction< Element >
Description of a process where reactants generate a set of products.
Nested reactions must be expressed within parenteses.
Member Typedef Documentation
◆ builder_type
template<class Element>
| using reactions::reaction< Element >::builder_type = element_traits::builder_tpl_t<Element> |
Underlying element type.
◆ element_type
template<class Element>
| using reactions::reaction< Element >::element_type = element_wrapper<Element> |
◆ nodes_type
template<class Element>
| using reactions::reaction< Element >::nodes_type = std::vector<node<Element, reaction> > |
Signature type of an element builder
Constructor & Destructor Documentation
◆ reaction() [1/5]
template<class Element>
|
default |
Collection of elements.
Default move constructor
◆ reaction() [2/5]
template<class Element>
|
default |
Default copy constructor.
◆ ~reaction()
template<class Element>
|
default |
Default destructor.
◆ reaction() [3/5]
template<class Element>
|
delete |
◆ reaction() [4/5]
template<class Element>
|
inlineprotected |
Constructor from the string iterators.
- Parameters
-
begin iterator pointing to the beginning of the string. end iterator pointing to the end of the string. builder function to create the underlying element from a string.
◆ reaction() [5/5]
template<class Element>
|
inlineprotected |
Constructor from the string iterators.
This constructor is called internally when creating reactions that contain other reactions.
- Parameters
-
sit iterator pointing to the current read position in the string. end iterator pointing to the end of the string. builder function to create the underlying element from a string.
Member Function Documentation
◆ operator!=()
template<class Element>
|
inline |
Compare two reactions.
- Parameters
-
other the reaction to compare with (of the same underlying type).
- Returns
- whether the two reactions have the same reactants and products or not.
◆ operator=()
template<class Element>
|
default |
Default assignment operator.
◆ operator==()
template<class Element>
|
inline |
Compare two reactions.
- Parameters
-
other the reaction to compare with (of the same underlying type).
- Returns
- whether the two reactions have the same reactants and products or not.
◆ products()
template<class Element>
|
inline |
Get the products of the reaction.
◆ reactants()
template<class Element>
|
inline |
Get the reactants of the reaction.
Friends And Related Function Documentation
◆ reactions::processes::make_process
template<class Element>
template<class Process >
|
friend |
Member Data Documentation
◆ m_products
template<class Element>
|
protected |
Products.
◆ m_reactants
template<class Element>
|
protected |
Reactants.
The documentation for this class was generated from the following file:
- /home/docs/checkouts/readthedocs.org/user_builds/reactions/checkouts/v0.1.1/include/reactions/processes.hpp
